Flanges
Design:
As Per ASME B16.5
Material Standard:
Carbon Steel: ASTM A105, LTCS

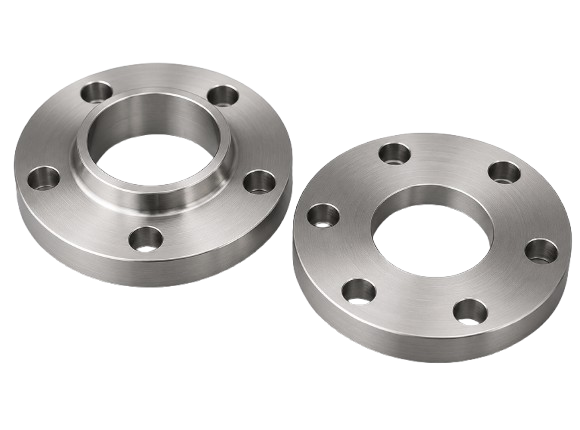

SliP-On Flanges (Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2" to 48”
Pressure Class: 150#, 300#
Size: 1/2" to 24"
Pressure Class: 600#, 900#Size: 1/2" to 6"
Pressure Class: 1500#, 2500#

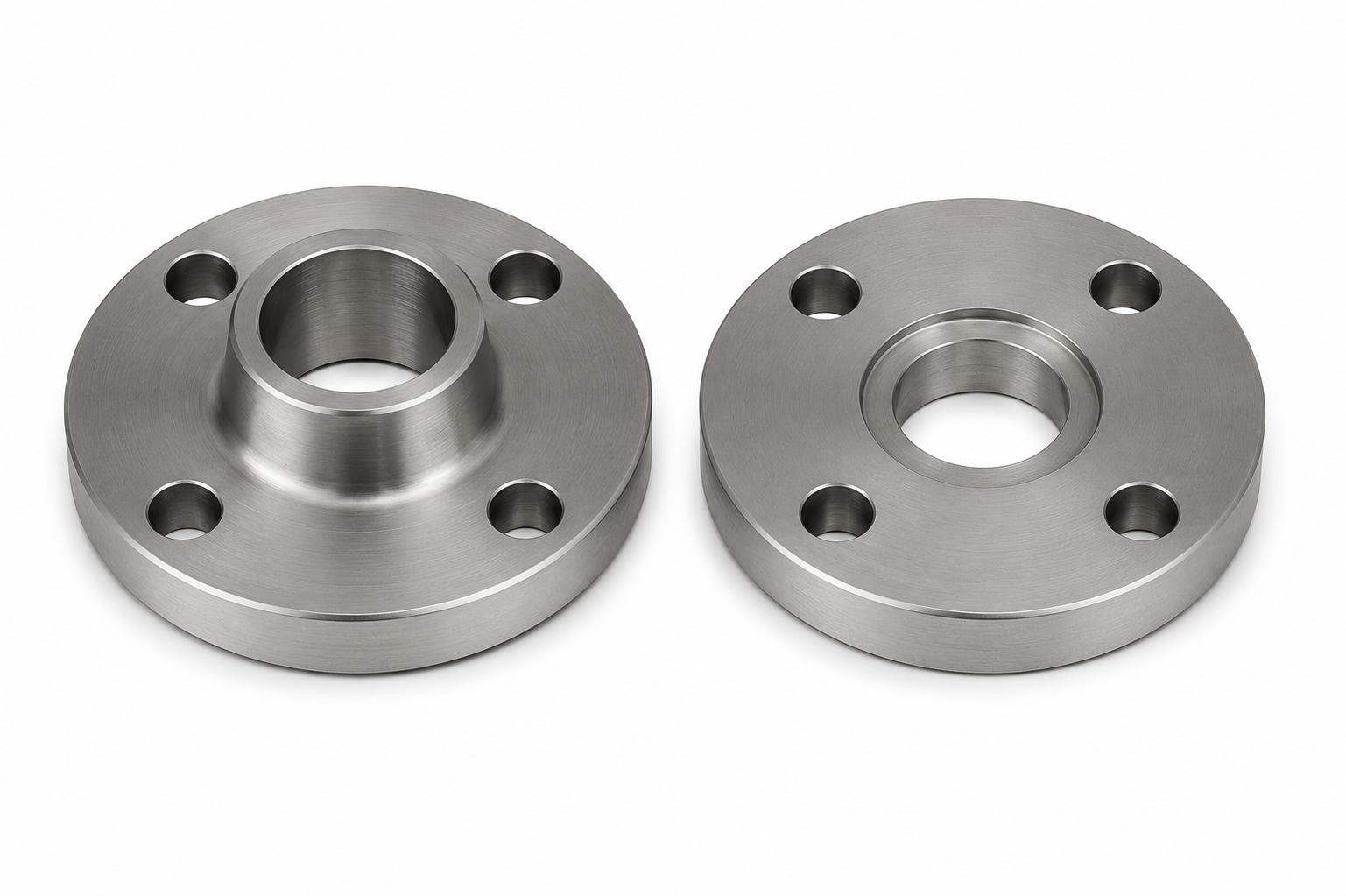

Socket Weld Flanges (Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2" to 4”
Pressure Class: 150#, 300#, 600#
End Type : Socket Weld

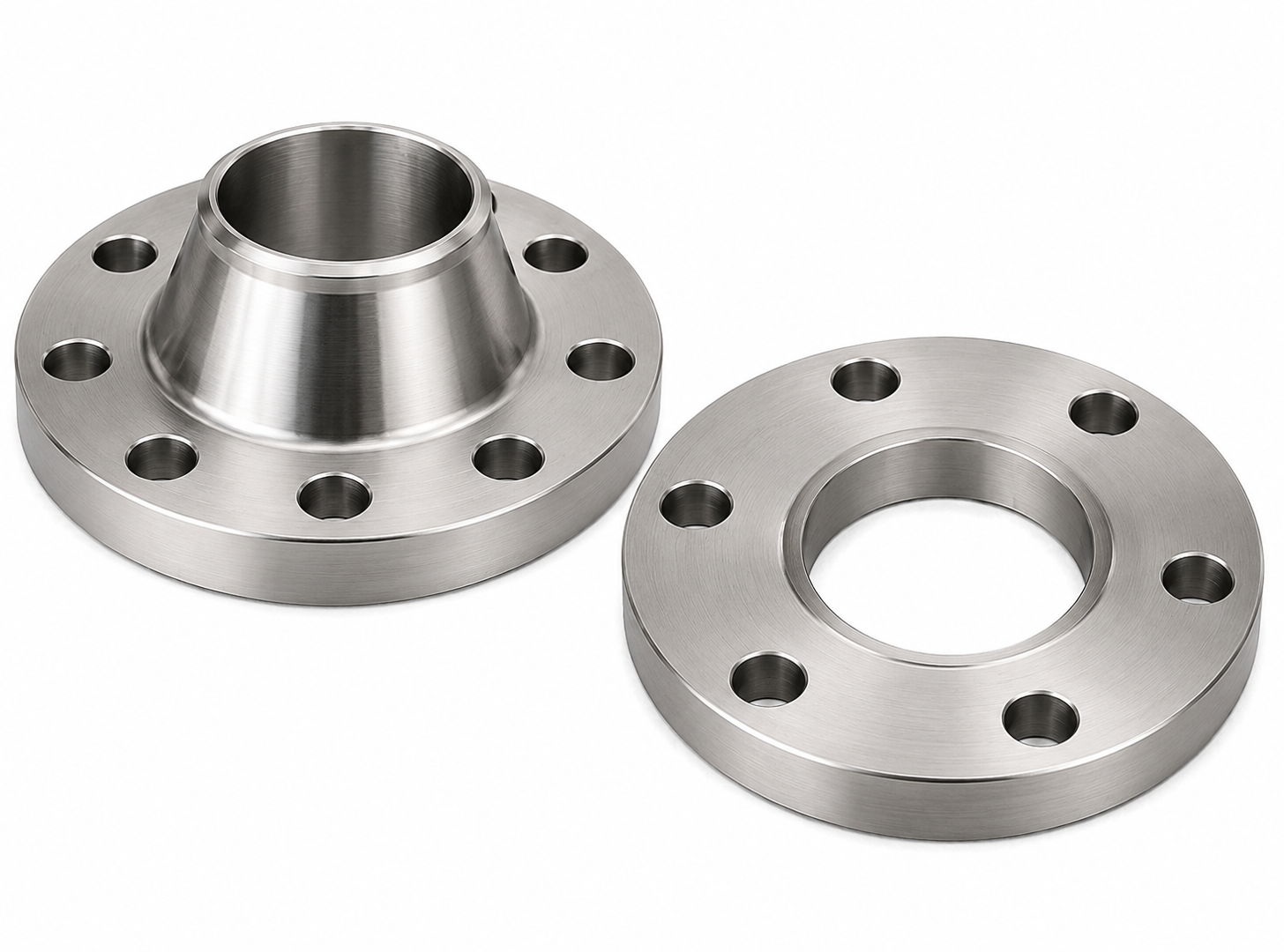

Weld-Neck Flanges (Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2" to 48”
Pressure Class: 150#, 300#
Size: 1/2" to 24"
Pressure Class: 600#, 900#Size: 1/2" to 6"
Pressure Class: 1500#, 2500#

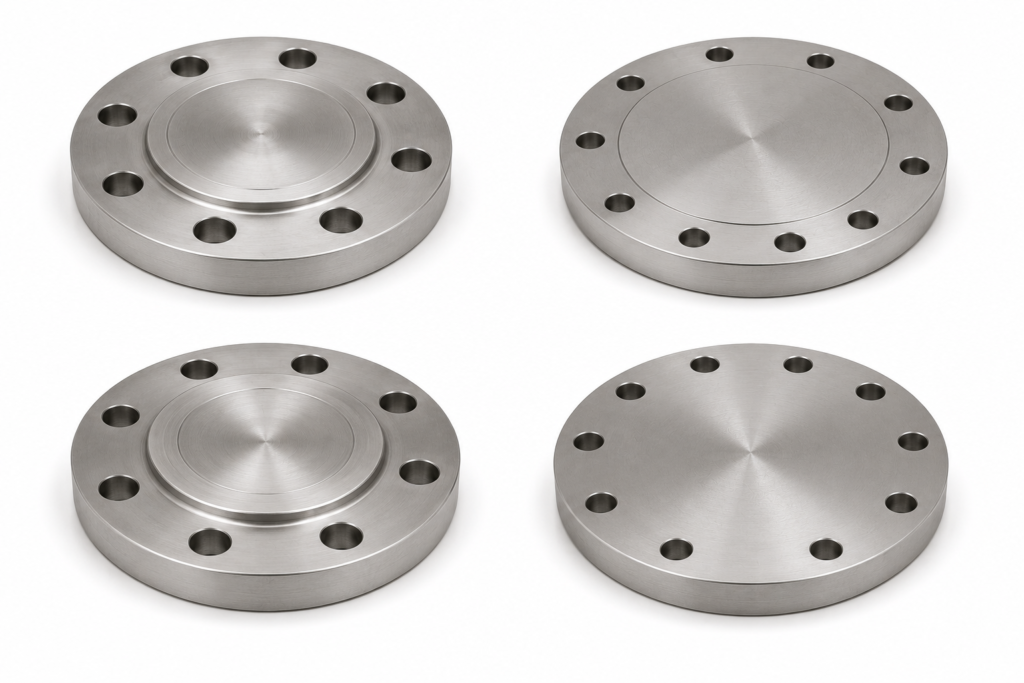

Blind Flanges (Raised Face / Flate Face)
SPECIFICATION:Size: 1/2" to 48”
Pressure Class: 150#, 300#
Size: 1/2" to 24"
Pressure Class: 600#, 900#
Size: 1/2" to 6"
Pressure Class: 1500#, 2500#

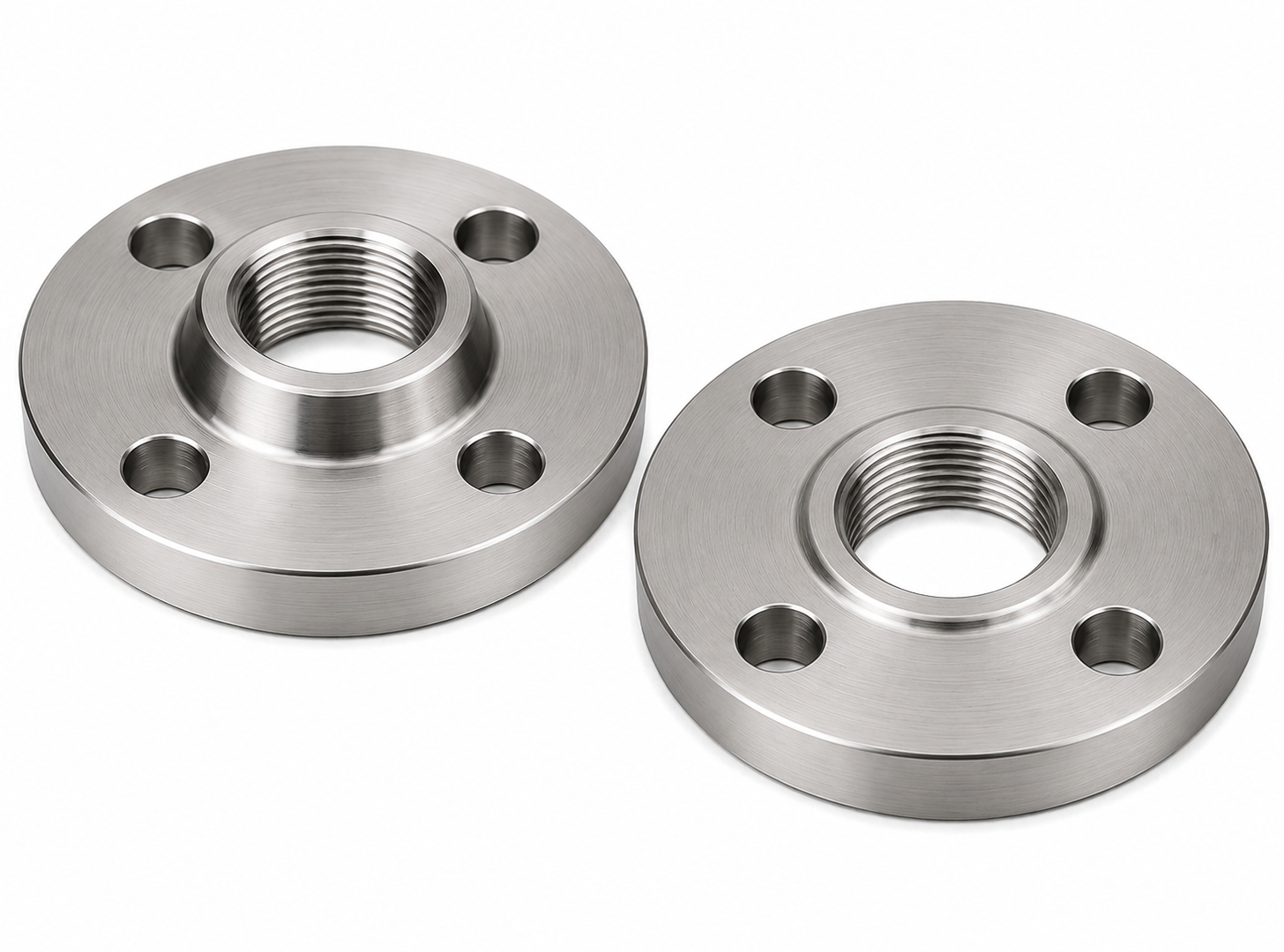

Threaded Flanges (Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2" to 12”
Pressure Class: 150#, 300#, 600#
End Type: Threaded (BSPP / BSPT / NPT/ API LP)

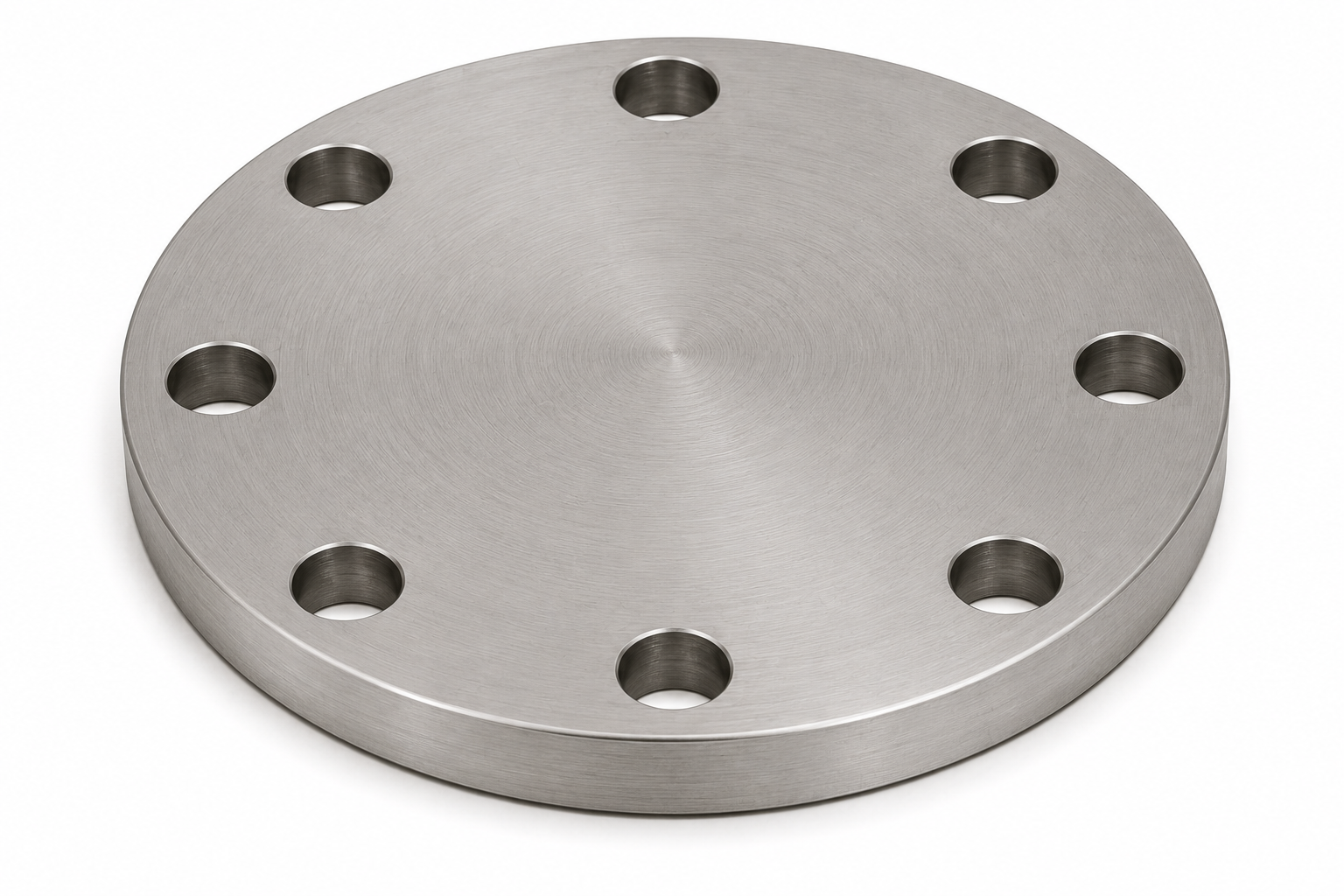

Plate Flange
SPECIFICATION:Size: 1/2" to 48”
Pressure Class: 150#, 300#
Cap
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)
Round Head Plug
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)
Squre Plug
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)
Hex Plug
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)
Hex Bushing
SPECIFICATION:
Size: 1/2" to 4"
End Type : Threaded (BSPP / BSPT / NPT/ API LP)
Pipe Nipple
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)
Hex Nipple
Size: 1/8" to 2"
End Type : Threaded (BSPP / BSPT / NPT/ API LP)
